  5. Gigabyte GA-M61PM-S2 (AM2 - DDR2 800) - OEM - Seminovo

Gigabyte GA-M61PM-S2 (AM2 - DDR2 800) - OEM - Seminovo

Ref: 19000
|
Marca: Gigabyte

Seja o primeiro a avaliar

Mais formas de pagamento

Produto indisponível
avise-me quando chegar:

Descrição


::Especificações técnicas.

- Marca: Gigabyte
- Modelo: GA-M61PM-S2

Atenção:
Placa mãe OEM, acompanha apenas espelho.
Manual, CD de instalação e cabos não inclusos.


CPU
AMD Socket AM2 Athlon™ 64 FX / Athlon™ 64 X2 Dual-Core / Athlon™ 64 / Sempron™ processor

Chipset
  • NVIDIA® GeForce 6100 / nForce 430
  • Super I/O chip: ITE IT8716
  • Integrated Peripherals
  1. T.I. IEEE1394 controller
  2. Realtek RTL8211 Gigabit Ethernet controller
  3. Realtek ALC883 Audio Codec

Memória
  • 4 DDR2 DIMM memory slots (supports up to 16GB memory)(Note 1)
  • Supports dual channel DDR2 800/667/533/400 DIMMs
  • Supports 1.8V DDR2 DIMMs
  • (Note 1) Due to the limitation of Windows 32-bit operating system, when more than 4GB of physical memory is installed, the actual memory available for the operating system will be less than 4GB; Windows 64-bit operating system doesn`t have such limitation.
Conectores Internos I/O
  • 1 24-pin ATX power connector
  • 1 4-pin ATX 12V power connector
  • 1 floppy connector
  • 1 IDE connectors
  • 4 SATA 3Gb/s connectors
  • 1 CPU fan connector
  • 1 system fan connector
  • 1 front panel connector
  • 1 front audio connector
  • 1 CD In connector
  • 1 SPDIF In/Out connector
  • 3 USB 2.0/1.1 connectors for additional 6 USB 2.0/1.1 ports by cables
  • 2 IEEE1394a connectors for additional 2 port by cable
  • 1 COMB connector
  • 1 Power LED connector
  • 1 Chassis Intrusion connector

Slots de Expansão
  • 1 PCI Express x 16 slot
  • 1 PCI Express x 1 slot
  • 2 PCI slots

Conectores Painel Traseiro
  • 1 PS/2 keyboard port
  • 1 PS/2 mouse port
  • 4 USB 2.0/1.1 ports
  • 1 parallel port
  • 1 IEEE1394 port
  • 1 COMA port
  • 1 VGA port
  • 1 RJ-45 port
  • 6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
Energia
ATX power connector and ATX 12V connector

Form Factor
Micro ATX form factor; 24.4cm x 24.4cm

Monitoramento H/W
  • System voltage detection
  • CPU / System temperature detection
  • CPU / System fan speed detection
  • CPU / System warning temperature
  • CPU fan failure warning
  • Supports CPU Smart Fan function (Note 2)
(Note 2) Whether the CPU Smart FAN Control function is supported will depend on the CPU you install.

BIOS
  • 1 4Mbit flash ROM
  • Use of licensed AWARD BIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

Outras Características
  • Supports @BIOS
  • Supports Download Center
  • Supports Q-Flash
  • Supports EasyTune (only supports Hardware Monitor function)(Note 3)
  • Supports Xpress Install
  • Supports Xpress Recovery2
  • Supports Xpress BIOS Rescue
(Note 3) EasyTune functions may vary depending on different motherboards.

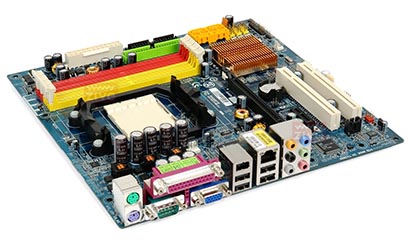

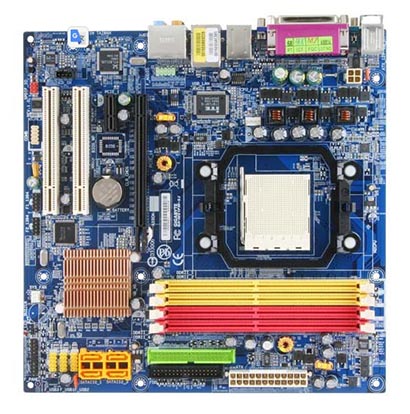

::Imagens.
