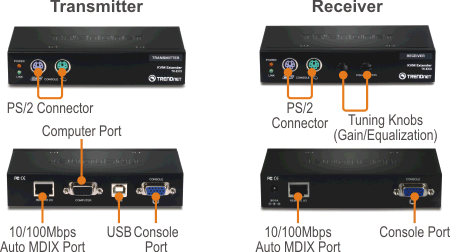

KVM Extension Kit TK-EX3 (Version v1.0R) * Extend keyboard, video, and mouse controls for distances of up to 150 m (490 ft.) * Connect the TK-EX3 to a TRENDnet KVM switch to manage multiple servers / computers * All required cables included (excluding a fast Ethernet cable to connect the transmit and receive units) * Features Hot-Key commands and 1600 x 1200 resolution support :: Features # Controls multiple servers remotely when used with a KVM switch # Displays high quality resolution  up to 1600 x 1200 pixels # Provides local and remote console ports to access one computer # Connect the local console (transmitter) to the remote console (receiver) with an Ethernet cable # Cat. 5, Cat. 5E or Cat. 6 Ethernet cable compliant # Fine-tune resolution on the remote consoles viewing monitor, with Gain (resolution adjustment) and Equalization (contrast correction) # PS/2 and USB interface support for loca console (transmitter) # PS/2 interface support for remote console (receiver) # Data and power LED indicators # Supports Windows, Mac, and Linux operating systems # No driver or software installation required # 2-year limited warranty Hardware Connections Connect to a computer or KVM switch Connectors Transmitter: HDB 15-pin VGA USB type B RJ-45 port Receiver HDB 15-pin VGA PS/2 keyboard & mouse RJ-45 port Power connector Cables (included) 1 x VGA cable (VGA to VGA and PS/2), 1.2m/ 4ft. 1 x USB cable (type A to type B), 1.2m/ 4ft. Supported OS Windows 7 (32/-64bit)/ Vista (32/64-bit)/ XP (32/64-bit)/2000/98/SE/ME Linux, Mac, Sun Solaris, DOS Resolution Up to 100m (328ft.) with 1600 x 1200 resolution Up to 150m (490ft.) with 1280 x 1024 resolution Power 9V DC, 1A LEDs Power, Link Dimension (L x W x H) 130 x 65 x 25mm (5 x 2.6 x 1in.) Weight Transmitter: 275g (9.7oz.) Receiver: 290g (10oz.) Temperature Operation: 0°C~40°C (32°F~104°F) Storage: -20°C~60°C (-4°F~140°F) Humidity Max. 90% (non-condensing) Certifications CE, FCC
